Features

• 128Mbps AV Phoneline Port as Home Network Backbone by Using Existing Phone Line
• Two 10/100Mbps Fast Ethernet Ports for FTTH, ADSL/Cable Modem and Ethernet Terminals (PC, Set-Top-Box, etc.)
• Distance of up to 2000 feet on AV Phoneline Port
• Built-in Filter to Eliminate Noise from Phone Set
• QoS Priority Mapping Support
• Plug & Play
• Compact Size Design

Introduction

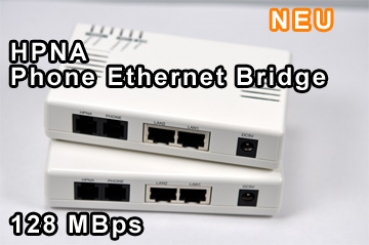

The Home PNA 128 AV Phoneline Ethernet Bridge enables you to set up your private network using your existing telephone lines, additional network wiring is not necessary. Simply connect the AV Phoneline Ethernet Bridge to a RJ-11 phone jack in the wall and you have broadband Internet access on any phone jack in the premise. Installation is easy, simply plug and play. Via the RJ-45 Ethernet ports, you can connect the AV Phoneline Ethernet Bridge to any Ethernet-interface device such as a Set-Top-Box, camera, switch or hub. The high-speed of 128 Mbps supports video-on-demand (VOD) services and multimedia-on-demand (MOD) services. With the Home PNA 128 AV Phoneline Ethernet Bridge, LAN environments can quickly be extended or changed without rewiring.

Technical Specifications

Network Standards

• HomePNA V3.0
• IEEE802.3
• IEEE802.3u
• IEEE802.3x

Connectors

• Ethernet: Two RJ-45 Ports
• AV Phoneline: Two RJ-11 Ports,
• One for AV Phoneline, the Other One for Phone

Transmission Speed and Distance

• Up to 128Mbps
• Up to 2000 Feet Maximal

Quality of Service

• VLAN Priority Support

Fast Ethernet Interface

• 10/100Mbps
• MDI/MDIX Auto Crossover

Indicators

• “Power” LED
• “AV Phoneline Link/Activity” LED
• “Ethernet Link/Activity” LED

Power Requirement

• External Power Supply: 5 VDC
• Power Consumption: < 5 Watts

Environmental Conditions

• Operating Temperature
  °C0 ~ 40° C (32F ~ 104F)
• Storage Temperature
  –10°C ~ 65 °C (14F ~ 149F)
• Operating Humidity
  10% ~ 95%, Non-condensing

Physical Dimension

• 117mm (W) x 75mm (D) x 32mm (H)
