Planet VIP-156PE - Power over Ethernt / PoE (SIP)

Print product data sheet

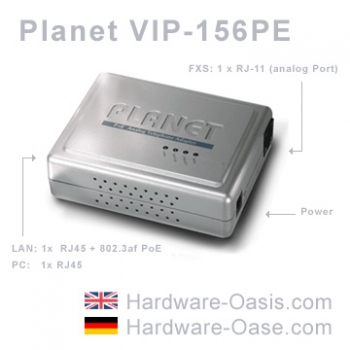

Planet VIP-156PE - Power over Ethernt / PoE (SIP)

Goods on stock *

802.3af PoE SIP Analog Telephone Adapter

Based on years of VoIP manufacturing experiences, PLANET Technology VoIP total solutions are known as advanced implementation of standards based telephony with mass deployment capability.

Cost-effective, easy-to-install and simple-to-use, the VIP-156PE converts standard telephones to IP-based networks. With the 802.3af PoE integration, the service providers and enterprises can offer users traditional and enhanced the telephony communication services via the existing broadband connection to the Internet or corporation network.

With the VIP-156PE, enterprises are able to save the installation cost and extend their past investments in telephones, conference and speakerphones. The VIP-156PE can be the bridge between the traditional analog systems and IP network with an extremely affordable investment.

The VIP-156PE includes two Ethernet interface for Internet (PPPoE, DHCP or Fixed IP), or office LAN connection. Plus the auto-provision and 802.3af PoE features, the VIP-156PE can be seamlessly integrated into the telephony network built up by our IP PBX system IPX-2000.

The VIP-156PE, and PLANET IP PBX system integration are the ideal combination of your office daily communications.

Product features

Feature-rich telephone service over home or office Internet/Intranet connection
802.3af PoE and auto-config features for flexible, ease-of use IP PBX system integration
Cost effective, field proven compatibility, and stability
Web-based and telephone keypad machine configuration
Remote administrator authentication
Voice prompt for machine configurations

VoIP Features
SIP 2.0 (RFC3261) compliant

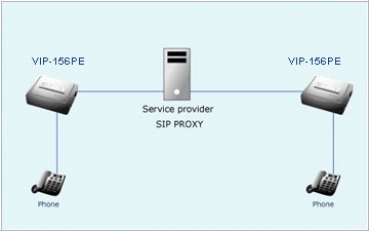

Peer-to-Peer / SIP proxy calls
Voice codec support: G.711, G.723.1, G.729A/G.729B
Voice processing: Voice Active
Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation
In band and out-of-band DTMF support

Hardware Specification
LAN 1 x 10/100Mbps RJ-45 port (PoE Port)
PC 1 x 10/100Mbps RJ-45 port
FXS 1 x RJ-11 connection
1x Power Supply

Protocols and Standard
Standard SIP 2.0 (RFC3261)
Voice codec G.723.1 (6.3k/5.3k), G.729A, G.729B, G.711
Voice Standard Voice activity detection (VAD) / Comfort noise generation (CNG) / Acoustic echo canceller (AEC) / G.165: Line echo canceller (LEC) / Jitter Buffer
Echo Cancellation G.168/G.165 compliant echo cancellation
Protocols SIP 2.0 (RFC-3261), TCP//IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE

Network and Configuration Static IP, PPPoE, DHCP
Access Mode Web, keypad
Management
Dimension (W x D x H) 94 x 72 x 30 mm
Operating temperature/ humidity 0~40 degree C, 10~95% humidity
Power Requirement 12V DC
EMC/EMI CE, FCC Class B

Accessories:

incl. 19% VAT + shipment
(**)

99.90 EUR

For further information, please visit the homepage of this product.
